CurveType=A01 vs CurveType=A03

The XMLs exports from the Transparency Platform website, returned by the REST API and provided via subscription usally contain the field curveType.

Variable-sized blocks (CurveType=A03) are widely used for the storage and transmission of data in the new Transparency Platform technology because they optimize the size of the stored and transmitted data.

Detailed information about the 2 formats can be found in the document "THE INTRODUCTION OF DIFFERENT TIME SERIES POSSIBILITIES (CURVETYPE) WITHIN ENTSO-E ELECTRONIC DOCUMENTS".

Examples

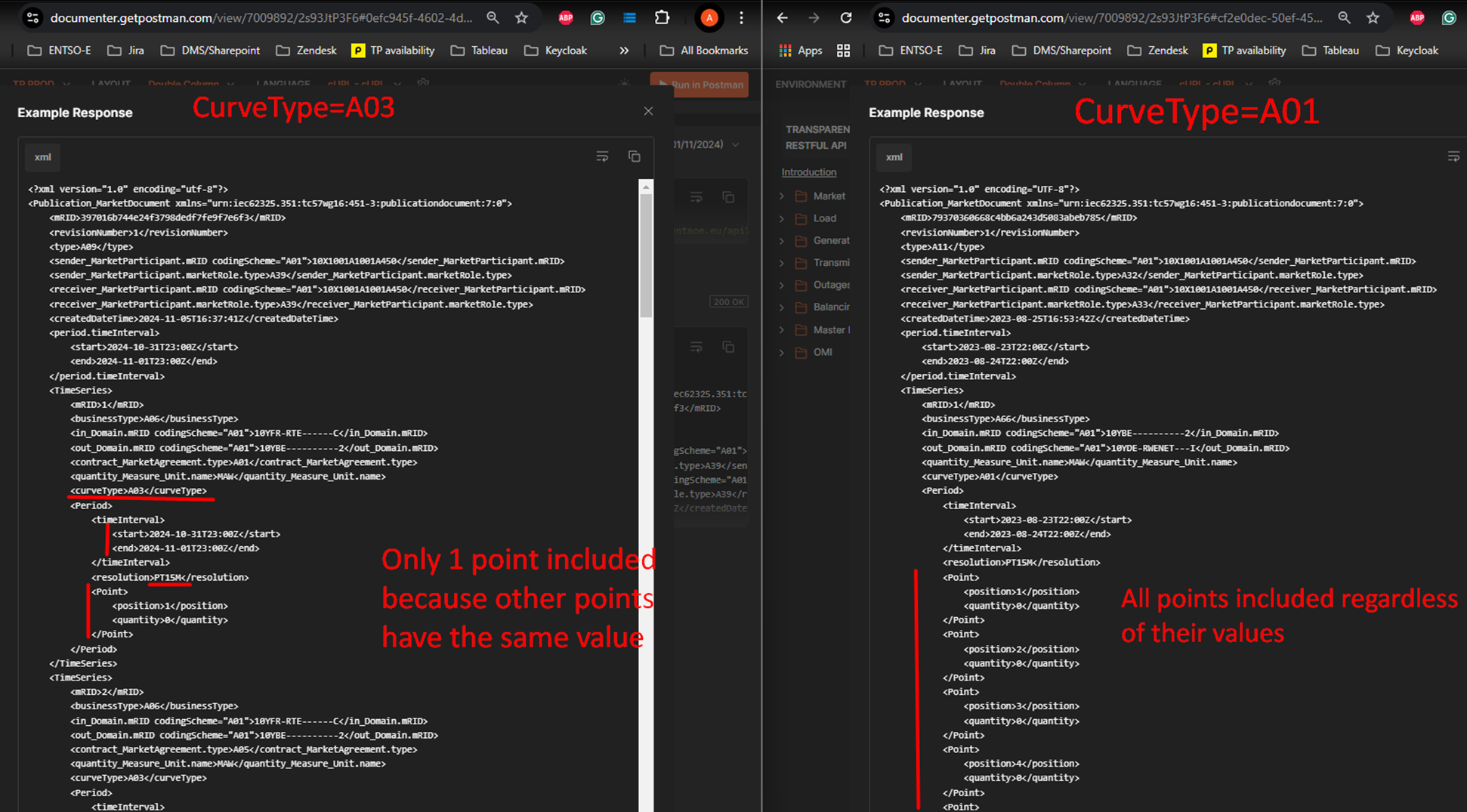

1. CurveType=A03 vs CurveType=A01:

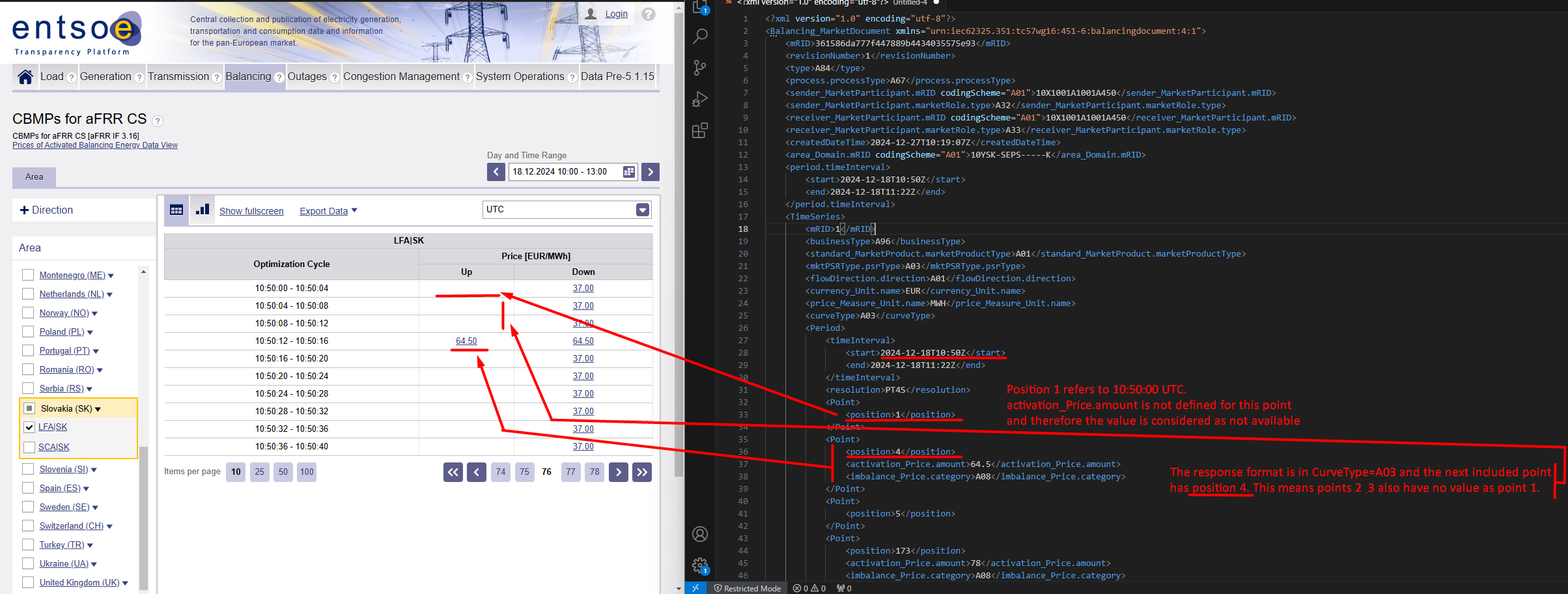

2. CurveType=A03 - Publication where value does not change vs Missing publication



   • Example 2 of missing values reported using CurveType=A03:

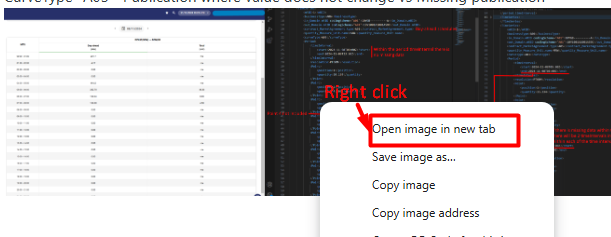

Tip: to zoom the screenshots please right click with the mouse on the screenshot and select "Open image in new tab"
